Low Cost WNS Horizontal Oil Gas Fuel Steam Boiler

Description of WNS Horizontal Oil Gas Fuel Steam Boiler :
the fuel of the boiler are diesel oil, natural gas,LNG.

Feature of WNS Horizontal Oil Gas Fuel Steam Boiler:
1,adopting tried and tested three-pass and wet-back structure,more safe and reliable.
2,combination of corrugated furnace and conical furnace
3,less heat loss
4,boiler controller system can run for a long time under high temprerature and high humidity condition.
5,every boiler must be subject to strict inspection and testing before delivery,including hydraulic test and X-ray inspection
6,customer-tailored design is available
7, Type: horizontal arrangement.

Parameters of WNS Horizontal Oil Gas Fuel Steam Boiler :
boiler type


WNS0.7-0.7/95/70-Y(Q)WNS1.05-0.7/95/70-Y(Q)WNS1.4-0.7/95/70-Y(Q)WNS2.1-0.7/95/70-Y(Q)WNS2.8-0.7/95/70-Y(Q)WNS4.2-0.7/95/70-Y(Q)WNS5.6-0.7/95/70-Y(Q)
rated thermal powerMW0.71.051.42.12.84.25.6
10 4 kcal/h6090120180240360480
rated water pressureMpa0.71.01.25
rated water tempreture 95/70
circulating watert/h2436487296144192
heat transfer aream 221.4336.5741.4462.8394.41139.48196.84
thermal effciency%92
net weight


t
3.844.755.788.810.114.7421.44
weight of full water loaded5.847.6310.016.0918.026.4836.6
water capacity2.012.884.227.297.911.7415.16
burning style               chamber combustion
burning fuel light diesel ,gas,nature gas,LPG
adapt to altitudem≤1000
fuel consuptionlight dieselKg/h6196.7128.6193.7256383.6511.5
 gasNm 3 /h153.4243322.9486.5643.1963.61284.8
natural gas Nm 3 /h73.1116154.3232.4307.2460.3613.8
 LPG27.844.158.788.4116.8175233.4
  electric power 3\AC380V\50HZ
  total outputKw1.82.62.65.591418





  connection external

dia. of water input tube







DN
80100100125125200200
dia. of water output tube80100100125125200200
tube dia. of air output valve25252525252525
  blow off tube dia.40404040505050
tube dia. of safety valve50505050506580
  chimneyΦ(mm)300400400500500600750


Low Cost Wns Horizontal Oil Gas Fuel Steam Boiler


Transportation for kaineng Boiler:
Low Cost Wns Horizontal Oil Gas Fuel Steam Boiler


Kaineng Service:
Pre-sale service:
Kaineng helps customer to choose the proper steam boiler model according to different requirements of various industry. Before delivery we will provide boiler drawings, auxiliary equipment drawings, foundation drawing, layout drawing, etc.

In-sale service:
Kaineng keeps 24 hours online and keeps close contacts during the production process to ensure on time delivery with perfect finished product.

After-sale service:
1. provide full range of original quality spare parts.
2. Kaineng offer project guidance service, we will dispatch engineers to your local project site to guide the installation and commissioning.
3. Our engineers will held a training for boiler workers to ensure the safe operation.
4. Free maintenance and repair for one year and lifelong service.

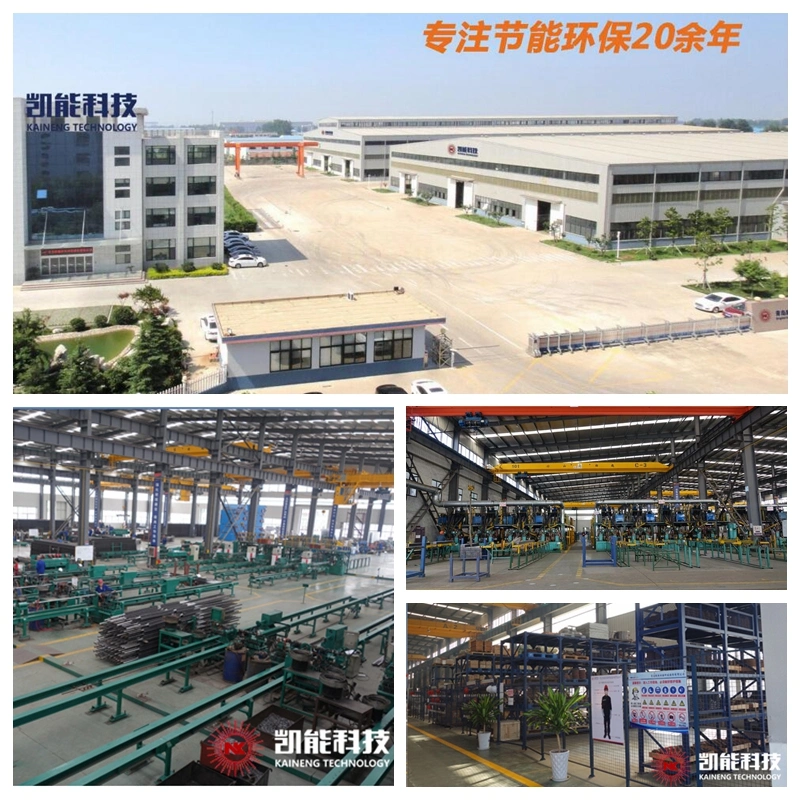

Kaineng Factory Area
