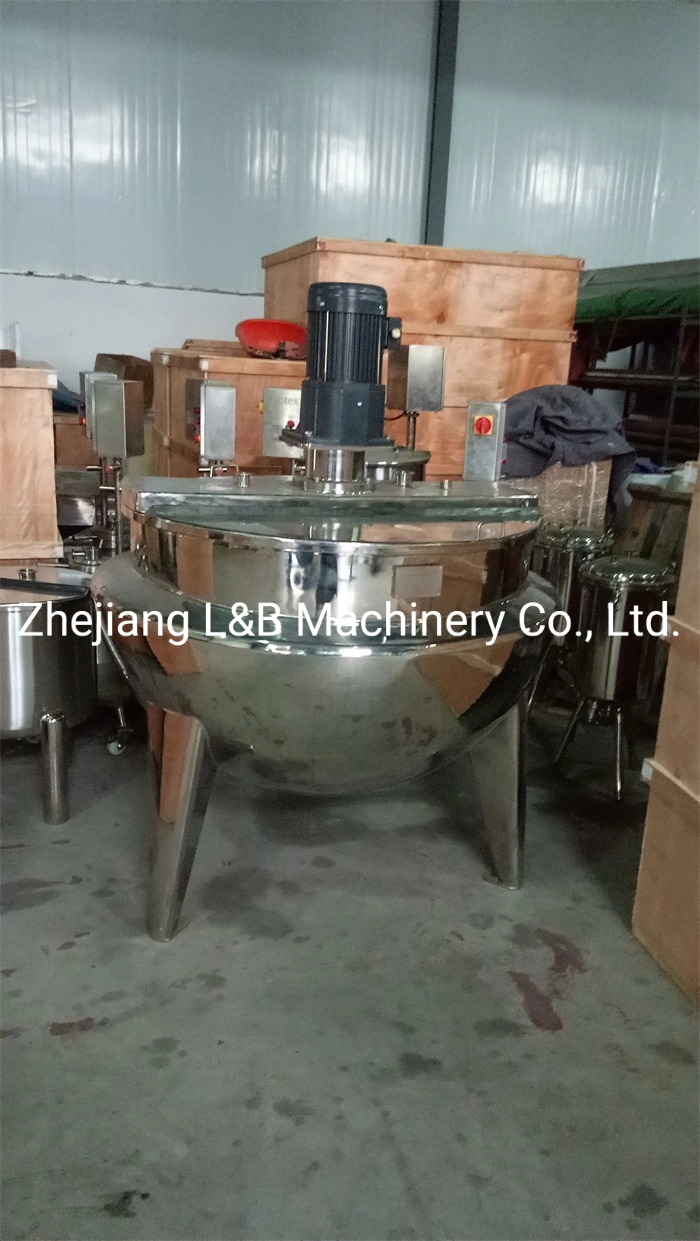

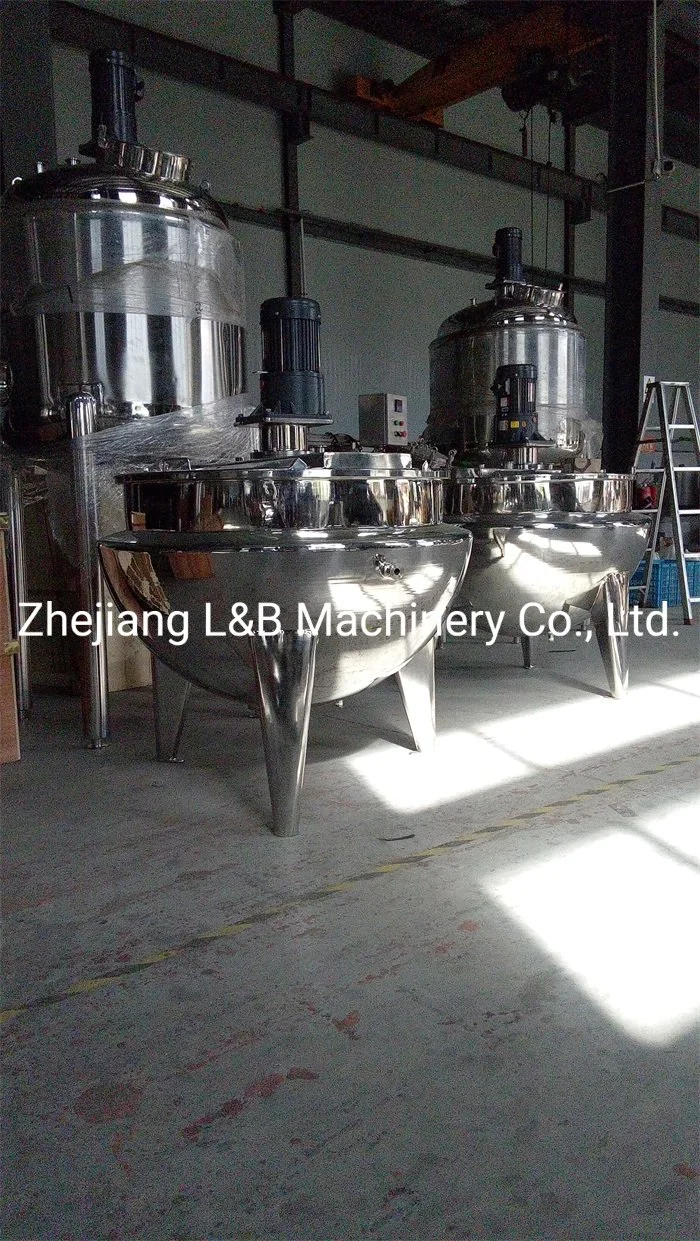

Tilting jacketed kettle is composed of kettle, bracket, worm wheel and worm etc.
The kettle can revolve with 180°,The equipment is used for open concentration, mainly
for decocting and concentration of liquids in industries of pharmaceutical industry, food
industry, chemical industry and light industry etc. Contact area of the equipment with
materials is made of stainless steel SUS304,which has perfect corrosion-proof performance,
and is highly endurable according to GMP requirements.
Blender also can be added according customer requirements.
We are specialized in producing different kinds of valves, pipe fitting, tubes, manhole covers,
pumps, tanks etc for many years. We can design the products according to your special request.
OEM is welcome too.
It can be do vertical type and tilt type.
Gas heating tilt kettle (without vertical type) & Electrical heating tilt kettle (can do vertical type) & pressure cooker
The kettle can revolve with 180°,The equipment is used for open concentration, mainly
for decocting and concentration of liquids in industries of pharmaceutical industry, food
industry, chemical industry and light industry etc. Contact area of the equipment with
materials is made of stainless steel SUS304,which has perfect corrosion-proof performance,
and is highly endurable according to GMP requirements.
Blender also can be added according customer requirements.
We are specialized in producing different kinds of valves, pipe fitting, tubes, manhole covers,
pumps, tanks etc for many years. We can design the products according to your special request.
OEM is welcome too.
| Effective volume(L) | Heating area (m2) | Jacket working pressure(Mpa) | Dimension(mm) |
| 50 | 0.4 | <0.2 | 720*600*830 |
| 100 | 0.45 | <0.2 | 800*650*950 |
| 150 | 0.76 | <0.2 | 1350*660*1000 |
| 200 | 1.0 | <0.2 | 1400*700*1100 |
| 300 | 1.15 | <0.2 | 1450*800*1110 |
| 400 | 1.44 | <0.2 | 1500*850*1140 |
| 500 | 1.65 | <0.2 | 1600*900*1150 |
It can be do vertical type and tilt type.
Gas heating tilt kettle (without vertical type) & Electrical heating tilt kettle (can do vertical type) & pressure cooker
