WNS series horizontal internal combustion boiler is a boiler shell type 3 passes wetback oil/gas fired boiler. After fuel is being atomized by burner, flame is full of the wave furnace and transfer heat via furnace wall, this is 1st pass; the high temperature smoke is collected in reversal chamber and then enters 2nd pass which is grooved tubes bundle area; after heat convection, air temperature gradually falls and goes to front smoke box and turn to 3rd pass, which is smooth tubes bundle area, and then enters chimney passing back smoke box and exhausted to the atmosphere.
Model | Rated | Rated | Rated | Thermal | Fuel Consumption | Equipment Power | Weight | ||
Capacity (t/h) | Pressure (Mpa) | Temperature (C) | Efficiency (%) | Light oil (Kg/h) | Natural gas (Nm³/h) | Burn light oil | Burn gas | (t) | |
WNS1 | 1 | 0.7/1.0/1.25 | 170/184/194 | >90 | 45-100 | 18-100 | 1.5 | 1.5 | 4 |
WNS1.5 | 1.5 | >90.2 | 101.73 | 123.47 | 2.2 | 1.5 | 5 | ||
WNS2 | 2 | 1.0/1.25/1.6 | 184/194/204 | >90.2 | 137.09 | 165.97 | 2.2 | 3 | 8 |
WNS3 | 3 | >91 | 205.75 | 249.6 | 7.5 | 7.5 | 9 | ||
WNS4 | 4 | >91 | 272.3 | 329.5 | 9 | 7.5 | 13 | ||
WNS5 | 5 | >91.5 | 134-402 | 80-500 | 17.2 | 15 | 15 | ||
WNS6 | 6 | >91.5 | 134-402 | 80-500 | 15 | 15 | 17 | ||
WN8 | 8 | 1.25/1.6/2.5 | 194/204/225 | >91.6 | 523.4 | 631.5 | 26 | 22 | 21 |
WNS10 | 10 | >91.6 | 212-890 | 150-1085 | 26 | 22 | 22 | ||
WNS12 | 12 | >91.8 | 915.5 | 1090 | 26 | 22 | 27 | ||
WNS15 | 15 | >91.8 | 931.5 | 1094.4 | / | / | 34 | ||
WNS20 | 20 | >92 | 1380.33 | 1598.44 | / | / | 45 | ||
Note: Parameter is for reference only, we can design the boilers based on customers' needs. |
2. Top Features of Taiguo Steam Boiler:
1. Full wet back 3 reverse chamber design
2. Large diameter corrugated furnace
3. High thermal efficiency, more than 96%
4. Multi function safty explosion proof equipment
5. Unique sealing, double door smoke box
6. High safty pressure and water level alarm equipment
7. Advanced full automatic PLC control
3. About Taiguo
Henan Taiguo Boiler Manufacturing Co., Ltd founded in 1976, is the professional manufacturer of Grade A industrial boilers. The company covering an area of 60,000 m2, construction area of 45,000m2, owning independent physical and chemical laboratories. Henan Taiguo Boiler offer various industrial boilers, including Gas & Oil Fired Boiler, Coal Fired Boiler, Biomass Fired Boiler, Electric Heating Boiler, Thermal Oil Boiler,Steam Generator, Pressure Vessel, Hot Air Furnace, etc.
4. Packing and Shipping
We will provide the safty Packing and delivery ways according to customer requirements.

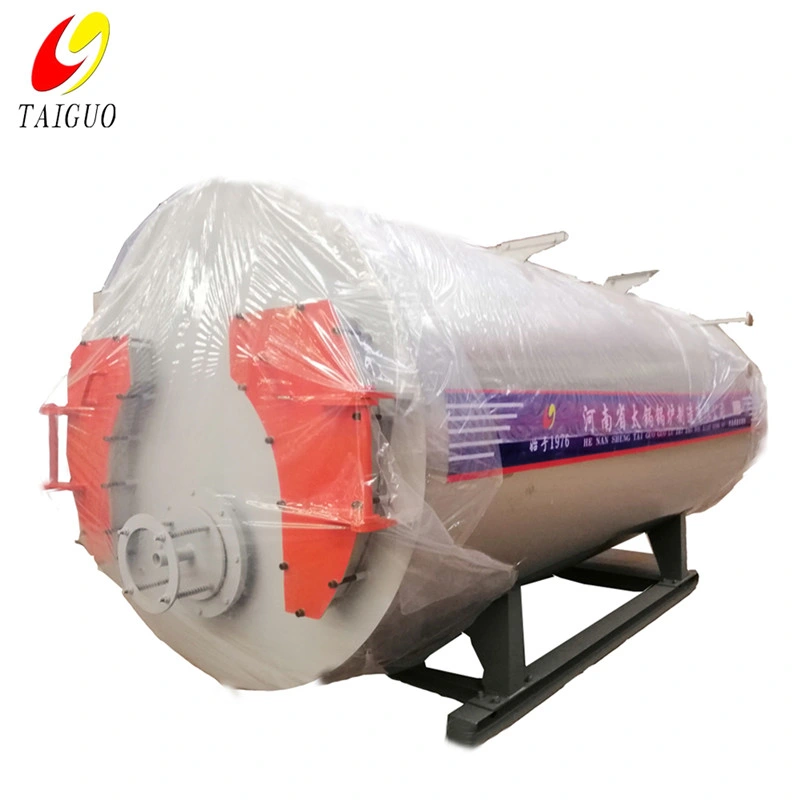

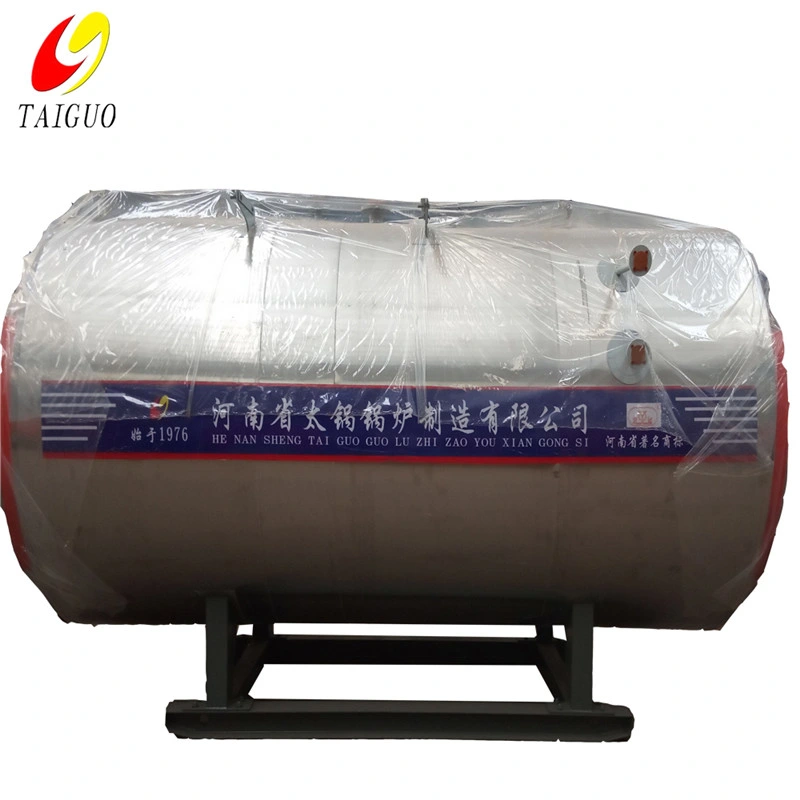

Small boiler will put into containers, bigger boiler use Open-top container or Flat Rack.
5. Our Service
Pre-Sales Service
* Inquiry and consulting supports
* Visting our factory
After-Sales Service
* Engineers available to service machinery overseas.
* Training how to install the machine, training how to use the boiler.
6. FAQ
1. How to buy a good boiler?
a. Choose a good supplier, A grade boiler manufacturer.
b. Specification is clear, steam or hot water, capacity,fuel,pressure and so on
c. Price is not the only problem, quality and service also important.
2. What is your main product?
Steam boiler, hot water boiler, thermal oil boiler and pressure autoclave.
Gas fired boiler, oil fired boiler, diesel fired boiler, coal fired boiler, biomass fired boiler.
Industry boiler, paper machine boiler, sugar mill boiler, printing industry boiler, food industry boiler,
power plant boiler,textile mill boiler, garment industry boiler and so on.
3. Why choose us?
a. A grade boiler factory, long history since 1976.
b. Henan boiler industrial area, Taikang No.1 boiler factory
c. China famous brand, ISO certificate
