8000kg steam boiler biomass wood shell bagasse steam boiler 8 tons

Steam boiler machine in sugar industryPart 1:General introduction1. Boiler capacity:1 ton to 40 ton 2.Stem pressure:1.0Mpa(10bar),1.25Mpa(13bar), 1.6Mpa(16bar), 2.5Mpa(25bar)3.Steam temperature output:184C,194C,204C,225C.4.Suitale fuel: biomass, wood pellet,peanut, paddy, rice husk, solid fuel,etc5.Structure: water tub

Featured Products

Steam boiler machine in sugar industry

Part 1:General introduction

1. Boiler capacity:1 ton to 40 ton

 2.Stem pressure:1.0Mpa(10bar),1.25Mpa(13bar), 1.6Mpa(16bar), 2.5Mpa(25bar)

3.Steam temperature output:184C,194C,204C,225C.

4.Suitale fuel: biomass, wood pellet,peanut, paddy, rice husk, solid fuel,etc

5.Structure: water tube, big cyclone room

6. Application:food industry, chemical industry, textile industry, garment industry, Pharmaceutical industry,dyeing industry,beverage industry,paper industry,rice mill,etc.

8000kg Steam Boiler Biomass Wood Husk Bagasse Fired Steam Boiler 8 Ton
Part two:Boiler advantages
8000kg Steam Boiler Biomass Wood Husk Bagasse Fired Steam Boiler 8 Ton


Part three:Techical datasheet

Boiler modelRated capacity

Rated

pressure



Rated steam temp.



Feed water temp.Exhaust gas temp.Design effiencyBoiler water volumeWeightDimensionDelivery mode
ton/hMpaºC m2ºC% m3tonmm
SZL22

1.25/1.6/

2.5/3.82

194/204/

226/450

20/105130.6783.136.76225900×2850×3460Package
SZL4414284.235.1296460×3280×3462Package
SZL6614284.818.4347830×3560×3462Package
SZL88149.1585.029.440.58870×3670×3462Package
SZL1010152.786.28.35247645×3180×3526Assembly
SZL1212148.786.5612.8379258×3294×3524Assembly
SZL1515149.8686.2915.524.711010×3300×2200Assembly
SZL2020147.486.815.825.9716680×6200×8420Assembly

Notice:

1.special proposal is available according to different place's different encironmental requirements;

2. burning fuel's heat value/chemincal component different, parameter different;

3.Since the boiler technology is keep updating, if there is any update in the future,please refer to the new.

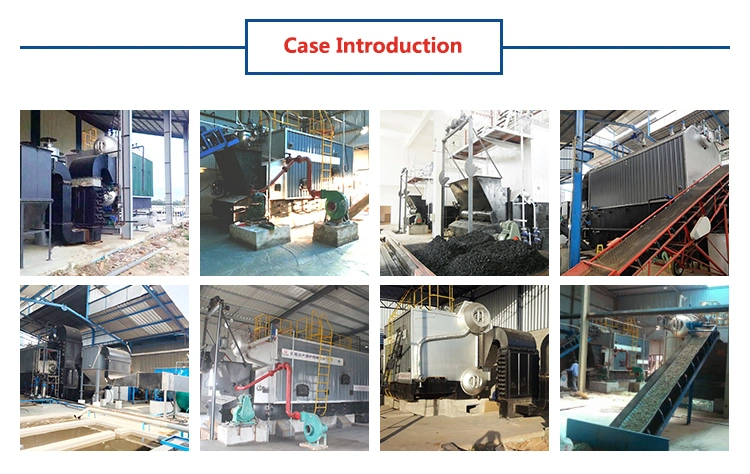

Part four:Typical projects
8000kg Steam Boiler Biomass Wood Husk Bagasse Fired Steam Boiler 8 Ton

Part five:Packign and shiping:
8000kg Steam Boiler Biomass Wood Husk Bagasse Fired Steam Boiler 8 Ton

Part six.Company introduction
Henan Yuanda Boiler Co., Ltd,Class A boiler manufacturer. Established in 1956,locates in Xihua County, Henan province, the central part of China.

We are professional manufacturer and supplier for  industrial boilers, with 62 years' experience in boiler design, production, installation and commissioning. Our company is one of  the enterprises which obtained boiler manufacturing license in China.

We have our own R & D team and cooperate with famous high-tech research institutes at the same time, which ensures our products in the forefront of technology and science.

 By the end of 2018, we have exports to 86 countries worldwide and have successfully supplied tailor made solutions for over 100,000 customers.

Our main products are:

(1)WNS Gas oil fired steam boiler and hot water boiler

(2) DZL / DZH Coal / wood fired steam boiler and hot water boiler

(3) SZL Biomass fired steam boiler and hot water boiler

(4) YY(Q)W Gas oil fired thermal oil boiler

(5) YLW Coal biomass fired thermal oil boiler

(6) All kinds of pressure vessels

Yuanda Boiler has been committed to improving efficiency and safety of boilers to provide safe, energy saving and environmental friendly products. We look forward to making a brilliant future with you.
8000kg Steam Boiler Biomass Wood Husk Bagasse Fired Steam Boiler 8 Ton
8000kg Steam Boiler Biomass Wood Husk Bagasse Fired Steam Boiler 8 Ton
8000kg Steam Boiler Biomass Wood Husk Bagasse Fired Steam Boiler 8 Ton
8000kg Steam Boiler Biomass Wood Husk Bagasse Fired Steam Boiler 8 Ton
