1 ton packaged gas fuel steam boiler

1 Ton packaged Gas Oil Fired Steam Boiler Rated capacity :1-20ton/hrDesign pressure :1.0Mpa (10bar/10kg/145psi)                             1.25Mpa(13bar/13kg/180psi)

Featured Products

1 Ton packaged Gas Oil Fired Steam Boiler
1 Ton Packaged Gas Oil Fired Steam Boiler
Rated capacity :1-20ton/hr
Design pressure :1.0Mpa (10bar/10kg/145psi)
Steam temperature: 184ºC  194ºC  204ºC
Fuel:Natual gas,LNG(Liquefied Natural Gas),CNG(Compressed Natural gas),Diesel,Heavy oil
1 Ton Packaged Gas Oil Fired Steam Boiler
1 Ton Packaged Gas Oil Fired Steam Boiler

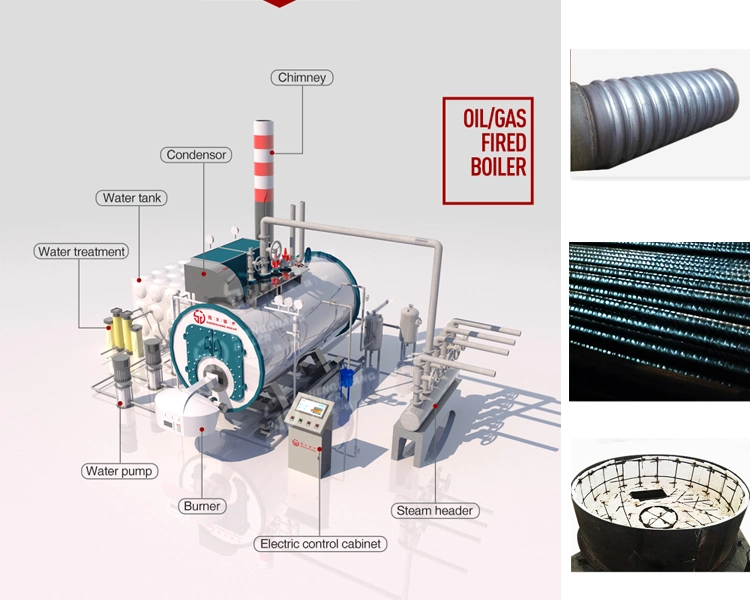

1.High pressure water supply pump
2.Burner :Italy :Baltur, Riello,Opel
High combustion efficiency, and ignition process control and overvoltage flameout protection function.
3.Electric control cabinet:
Touch screen
Two language
PLC control system
The functions of automatic water supply, automatic ignition, overpressure and overtemperature, flameout, advanced remote control function, on-line monitoring of dosage and fault alarm .
4.Automatic water treatment
Reduce the content of Ca2+ Mg²+ in water,avoid scaling of boiler,prolong boiler service life.
5.Steam header
According to the customer demands, design the cylinder outlet size and quantity
Oil(Gas)fired condensing steam boiler technical parametersOil(Gas)fired steam boiler technical parameters
Rated evaporation capacity(t/h)1234612346
Rated working pressure(Mpa)1.0/1.250.7/1.251.25/1.61.25/1.61.25/1.61/1.60.7/1.251.25/1.61.25/1.61.25/1.6
Rated steam temperature(ºC)184/204170/194194/204194/204194/204184/204170/194194/204194/204194/204
Water- supply temperature(ºC)2020
Thermal efficiency(%)99%96%
(Applicable  fuel) Heavy oil /Light oil/Natural gas/Liquefied petroleum gas ( LPG )/Coke Oven Gas(COG)
Fuel consumption Heavy oil kg/h65.6131.2196.8262.4393.772.5145231290.5426.7
light oil kg/h63.1126.2189.3252.4378.768.2137217273.3401.6
Natural gas Nm³/h66.7133.4200266.7400.181.5163259326485.3
Maximum size of shipping part L×W×H(mm)3925x 2250x26204814x2504x33665250x 2735x36306122x 2764x36306760x2804x38773200×1880×21304000×2350×25004300×2600×28004600×2600×28005680×2632×2991
Maximum  weight  of shipping part (ton)4.89.510.51214.547.7910.916
For 8-20ton/hr boiler technical parameters,
I will send you when you send us an inquiry
Remark: 1.Due to the continuous technical development, the technical parameters can be changed without warning. The technical parameters are subject to the drawings.
2.Electric power: 380V-440V, 50Hz/60Hz.
1 Ton Packaged Gas Oil Fired Steam Boiler
1 Ton Packaged Gas Oil Fired Steam Boiler
1 Ton Packaged Gas Oil Fired Steam Boiler
1 Ton Packaged Gas Oil Fired Steam Boiler
Class A Boiler manufacuturer,Design Lisence of special equipment,Class A Manufacture Lisense of special equipment ,Installation repaire&mentainence Lisense of special equipment,OHSAS18001,ISO9001,ISO14001,DOSH
1 Ton Packaged Gas Oil Fired Steam Boiler
1 Ton Packaged Gas Oil Fired Steam Boiler
Q: Are you manufacturer?
A: Yes, we are a manufacturer. Our factory established in 1978 in Pingdu Qingdao.
Q:How to choose a boiler type ?
A: Generally we should confirm the boiler type (steam or hot water), capacity,
 pressure(or output,temperature) and fuel(coal, biomass, gas or oil) of the boiler.
Q: How long is the warranty time for the boilers?
A: Based on highly responsible for your esteemed company, our company provides one year free maintenance due to equipment itself failure.
Q: How about the installation ?
A:We could offer you 2 proposals.
i)Guide installation
 Our company arranges 1-2 staffs to guide the installation of boiler on site , fully guarantee the installation quality.
ii)Staff installation
Our company is in charge of installation process, only your company to provide accommodation, round-trip cost and the wages of workers.
Q: Could you offer some wear parts?
A: Our company provides one set of tools for free, such as wrenches, gaskets used for convenient maintenance.
Q: What's your MOQ?
A: 1 set, if purchase more, you will get a more favorable price.
Q: Do you have any Certificate?
A: Yes. We have got ISO9001 & ISO14001 &DOSH certificate. If necessary, we could help you to get CE ASME or AS certificate.
Q: What is your payment term ?
A: T/T, L/C is well accepted.
